MTX300 0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed Flame Retardant Power & Control Cables (Single Core)

Application
These unarmoured power & control cables are used on board of ships in all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352. These cables are flame retardant, low smoke & halogen free.

Standards
 IEC 60092-350/351/353/359
 IEC 60332-1
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

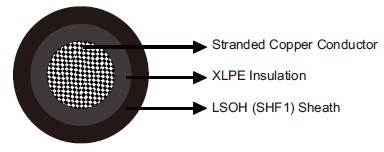

Construction
 Conductors: Class 2 stranded copper conductor, round or sector shaped. Class 5 stranded conductors can be offered upon request.
 Insulation: XLPE.
 Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.

Core Identification
 Single core: Black

Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD (OD>25mm); 4×OD (OD ≤25mm)
Temperature Range: -30℃ ~ +80℃

Dimensions and Weight
3MTX300 1RZ1-R Single Core 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)
